TFT-LCD Production Line

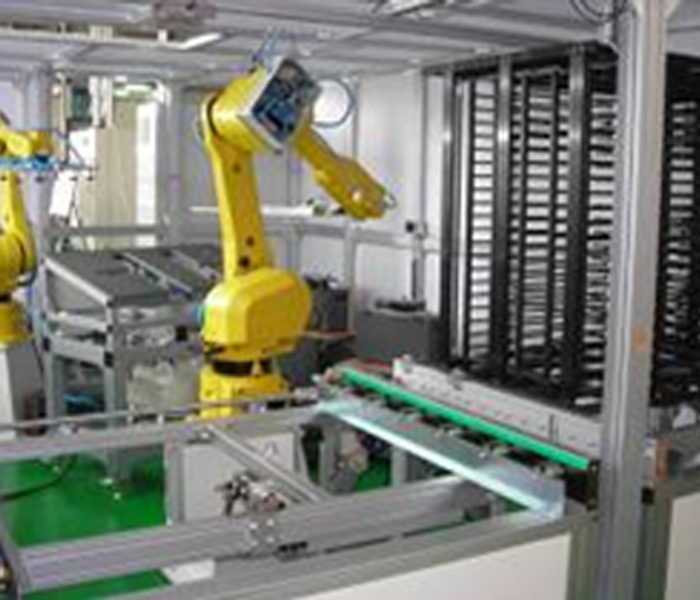

Cell Loading

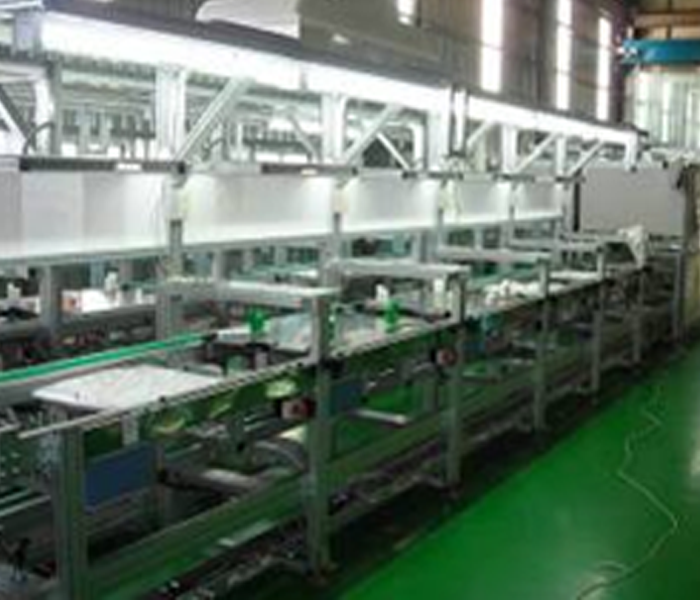

Module Assembly
Aging Room

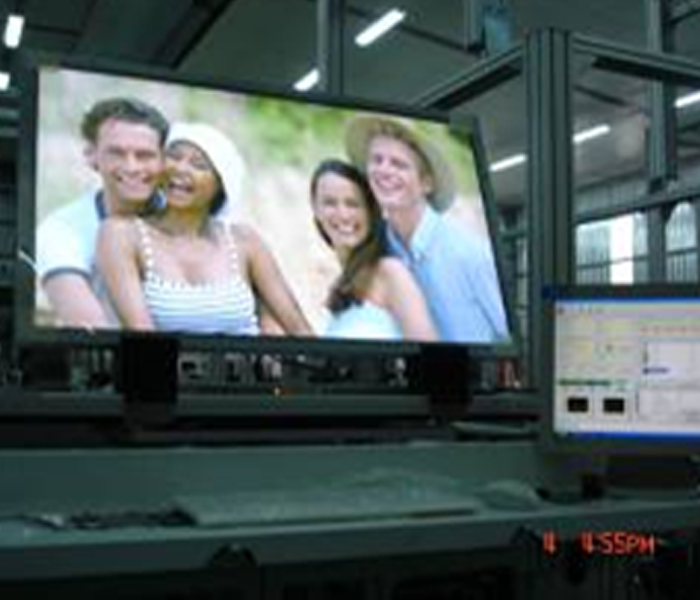

Module Inspection

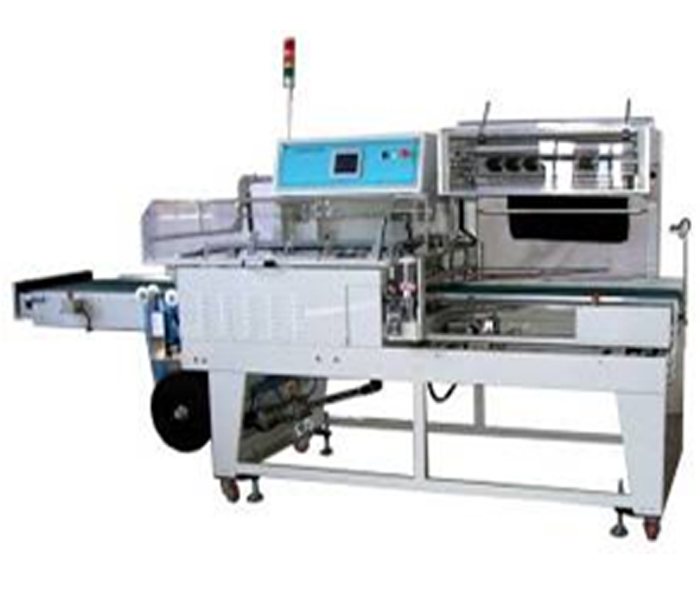

Auto Packer
Auto Packer

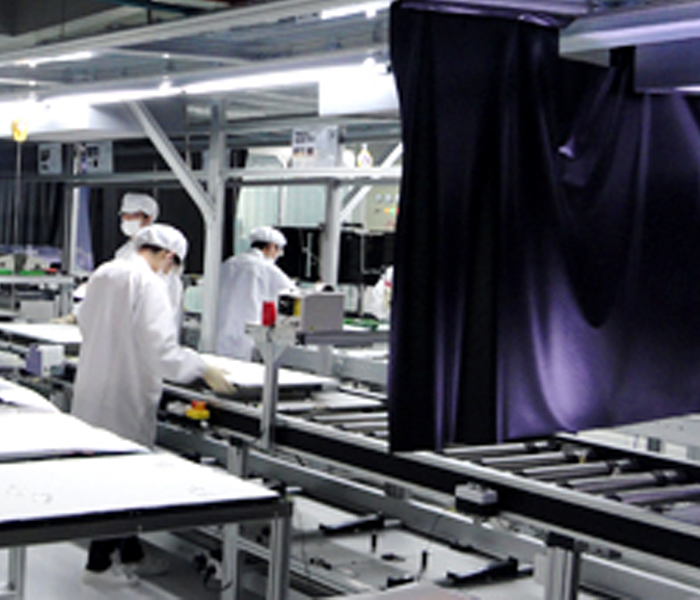

TV Module Assembly

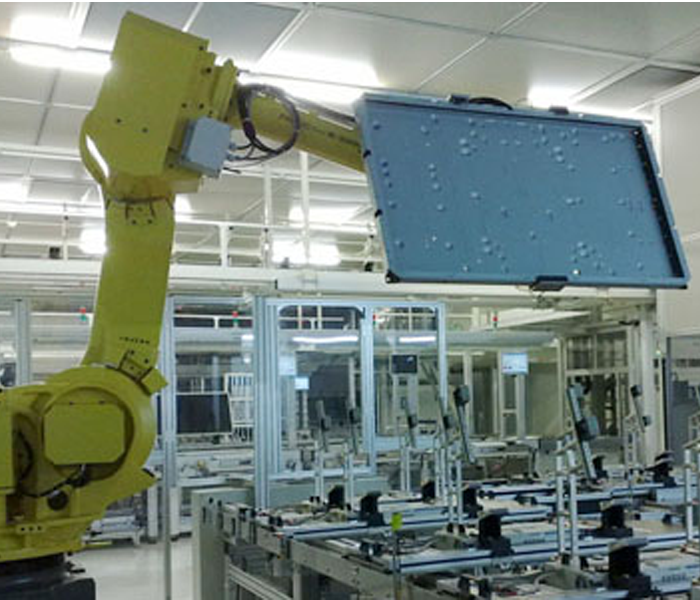

Packing

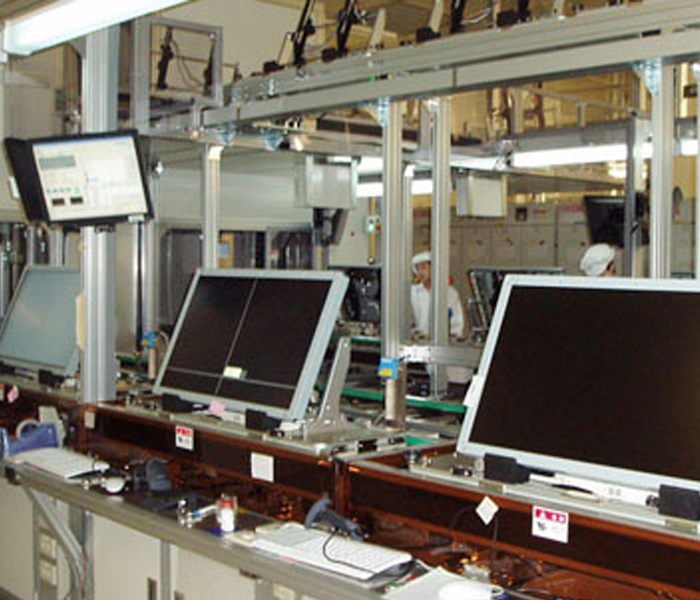

In-line Test Inspection

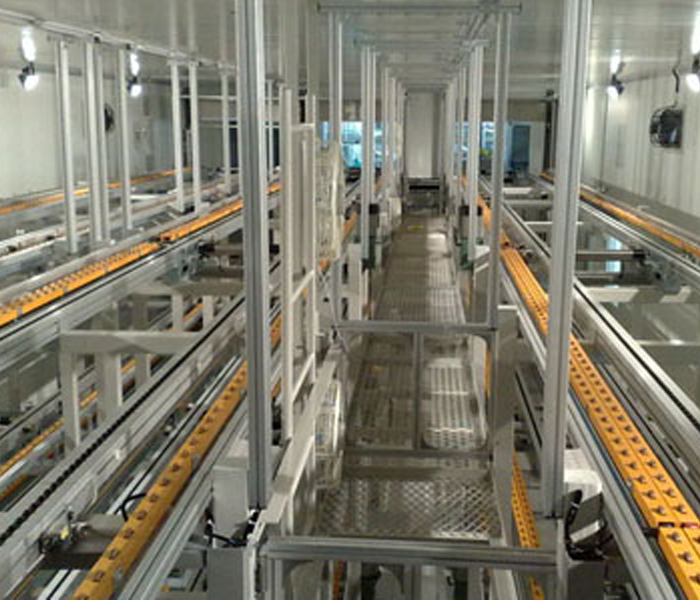

Aging In Line

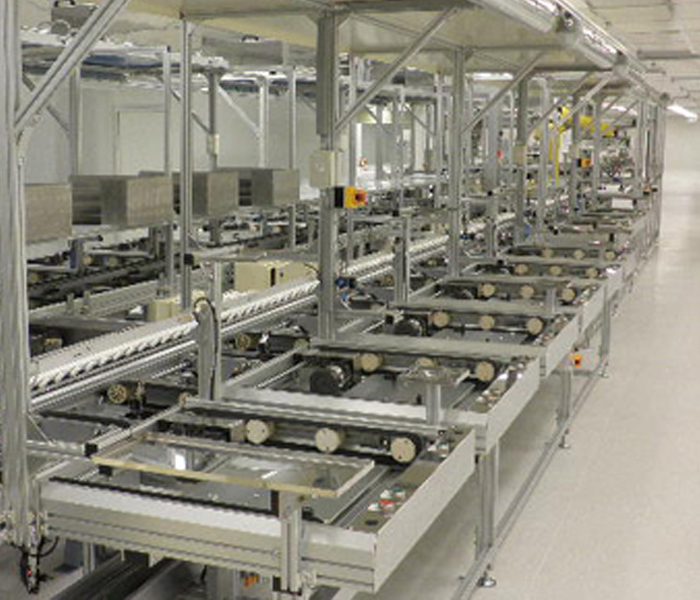

Module Assembly

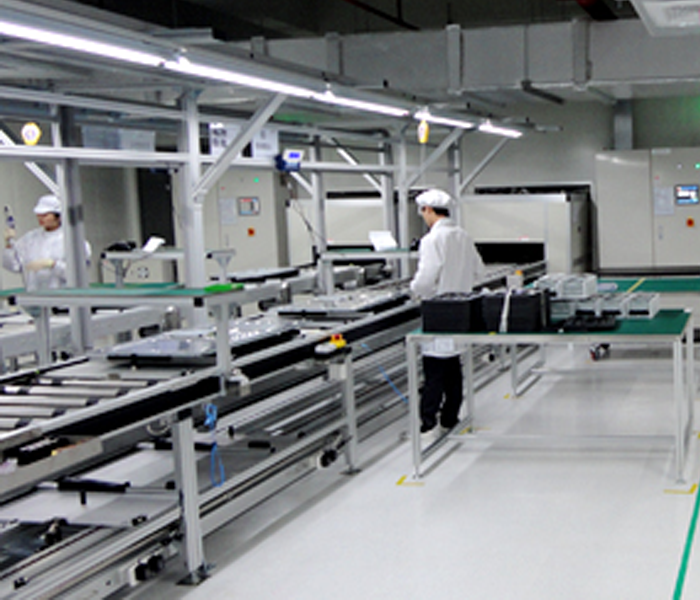

TV Module Assembly

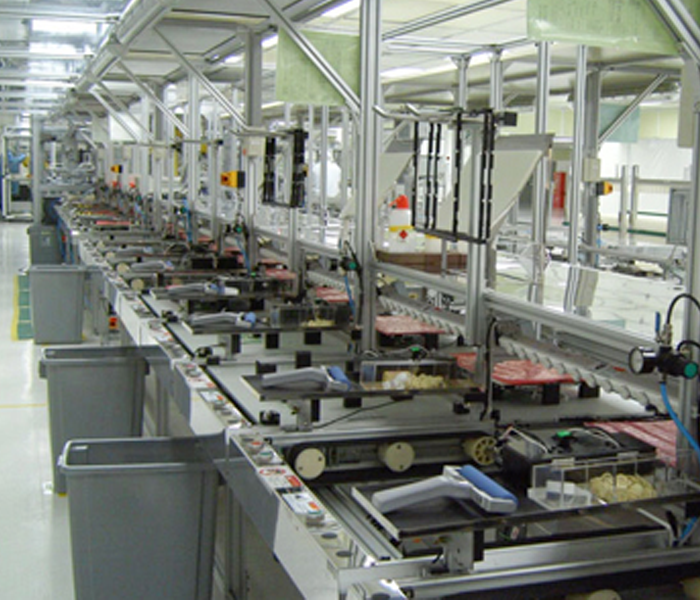

Back Light Assembly
Key Features

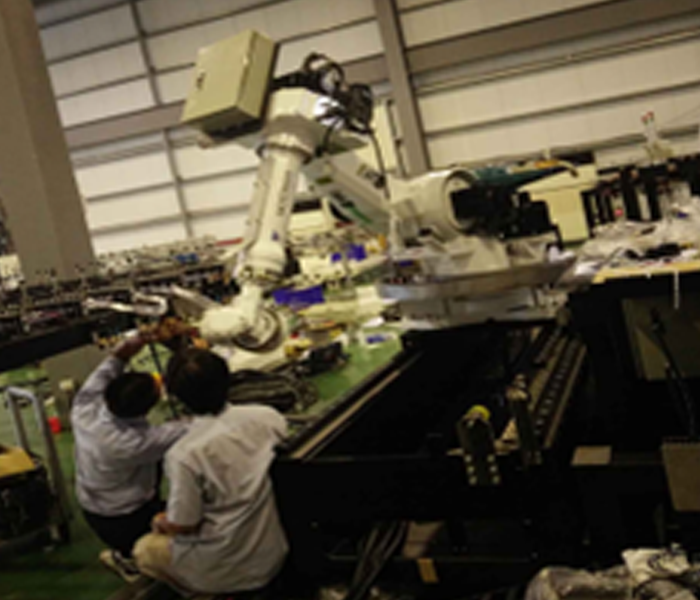

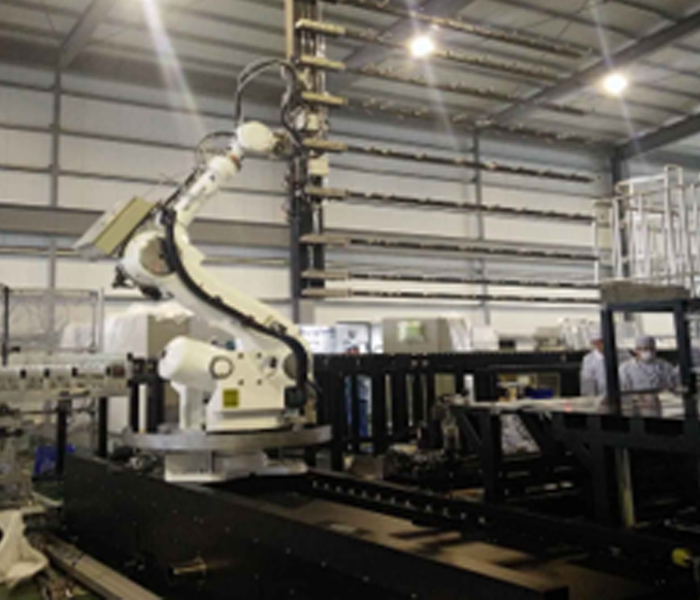

- Combine cell and backlight by robot
- Process in clean room, no particle issue
- Less 30 minutes to module change
- Automatic film pealing system
- FDV detection design of multi-station by one people
Aging Room Functions
- Low power consumption design < 150KW
- High efficiency of temperature Insulation partition and the stability of the average temperature
- Automatic deployment of FIFO and specify output designed
- Mixing modules production by automatic
Pallet
- Testing signal supply by auto contact
- Easily disassemble and maintain for signal box
- Smallest space required and largest capacity output
- Two ways electric poles design
Strong System
- Match customer's requirement to create CIM system
- Friendly controlling interface and fast operation system
- Touch panel interface
Introduction
TFT Performance

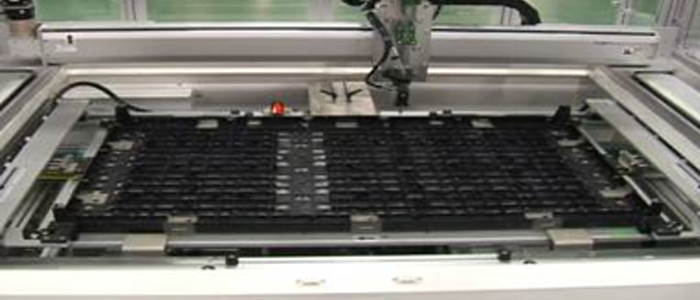

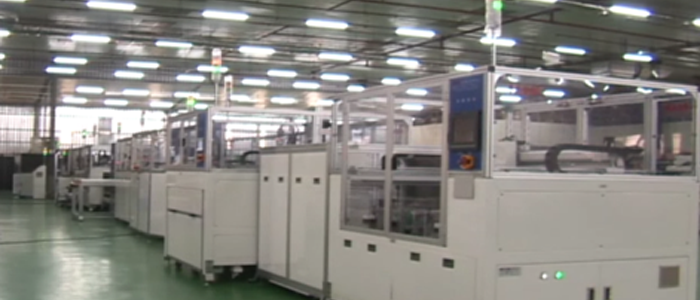

LED TV Auto Production Line

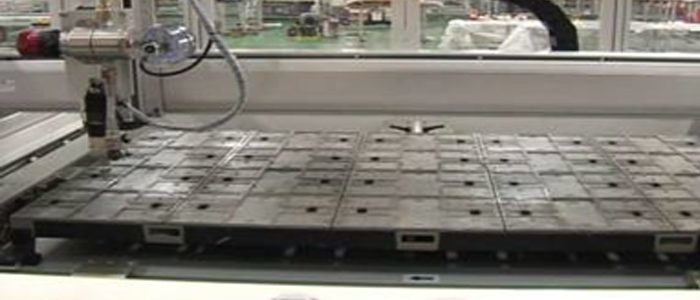

Pallet and Module Loading

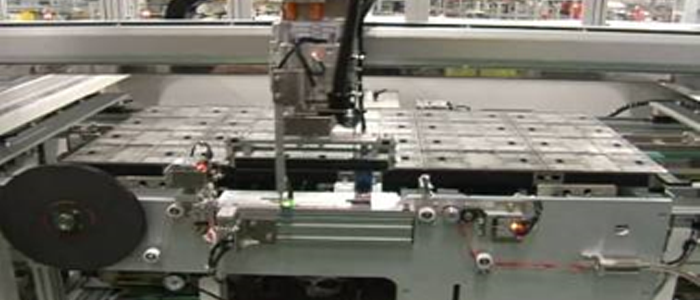

Auto Screwing
Auto Tape Typing
Auto Cell Layup
